Application

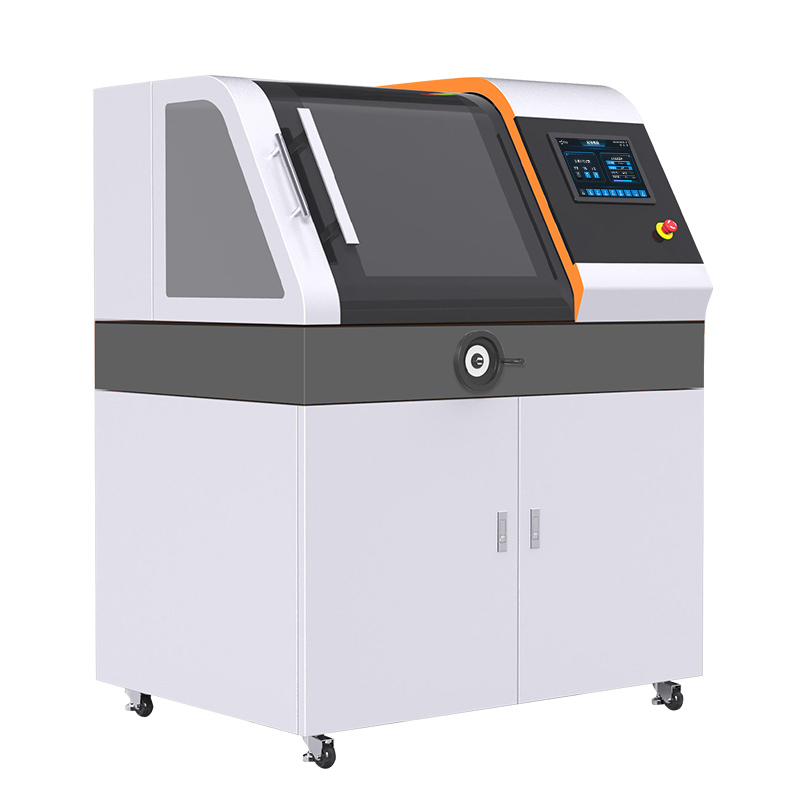

This equipment is a floor-standing, integrated precision intelligent automatic metallographic cutting machine designed to meet the needs of precise positioning and multi-positioning cutting. It features a 10-inch extra-large color touchscreen and a PLC control system. Its unique split-type, double-layer, movable precision positioning platform meets the precision requirements for flattening thin slices of various irregular parts. The feed stroke is arbitrarily set, and the cutting speed is infinitely adjustable from 1-100mm/min, with online adjustments possible based on the cutting situation. It is suitable for precision cutting and sampling of various material samples.
Technical Parameters
| Y-Axis Effective Travel | 280mm |
| Maximum Cutting Thickness | 110mm |
| Maximum Cutting Size (L×W) | 250×160mm |
| Cutting Blade Specification | 350*32*2.5mm |
| Automatic Cutting Mode | Platform Fixed, Blade Moves for Cutting |
| Manual Cutting Mode | Blade Fixed, Platform Moves for Cutting |
| Cutting Speed | 1-100mm/min (Stepless Speed Regulation) |
| Spindle Speed | 2800r/min |
| Platform X-Axis Movement | Manual 50mm (Scale 0.05mm) |
| Platform Y-Axis Speed | 0-100mm (Stepless Speed Regulation) |
| Human-Machine Interface | 10-inch Touch Screen, PLC Control |
| Cutting Table Size | 250*280mm |
| Clamping Table Specification | Split-type Double-layer Movable Platform |
| Reset Mode | Automatic Reset |
| Automatic Cooling System | Water Cooling, 3 Channels |
| Water Tank Capacity | 60L |
| Motor Power | 4.0KW |
| Equipment Dimensions (L×W×H) | 1200*950*1450mm |
| Power Supply | Three-Phase 380V 50HZ |
| Weight | 430KG |
