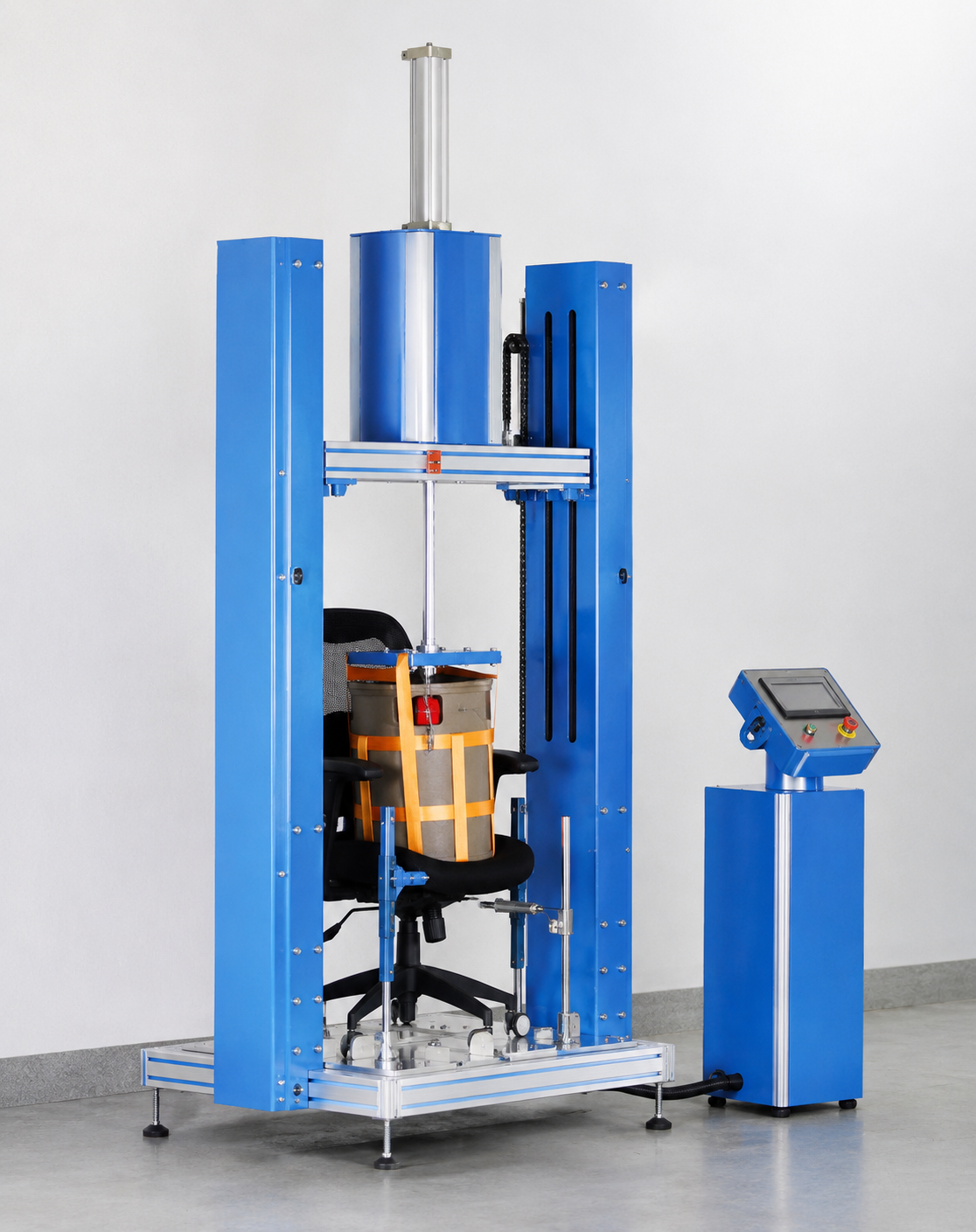

Chair Drop Impact Tester

Standard                SectionTest Item

QB/T 2280-20166.6.2        Seating Impact

QB/T 2280-20166.6.12.1Seating Durability Tests - Cyclic

BIFMA X5.1-20177        Drop Test - Dynamic

BIFMA X5.1-201710.3        Impact Test

BIFMA X5.4-202014        Seating Durability Tests - Cyclic

BIFMA X5.4-202015        Drop Test - Dynamic

BIFMA X5.9-20197.2        Drop Test - Dynamic - for Units with Seat Surfaces

BIFMA X5.9-20197.3        Durability Test for Units with Seating Surfaces - Cyclic Impact

EN 1728:2012        6.24        Seat Impact Test

EN 1728:2012        8.8        Impact Test

EN 1730:2012        6.6.3        Vertical Impact Test for All Other Table Tops

SPECIFICATIONS

Nominal Lift Capacity: 180 kg (400 lbs)

Impact Stroke: 300 mm

Impact Velocity: 5–15 CPM (customizable)

Adjustable Maximum Height of Impact Bag Above Floor: 1200 mm

Body Size: 1440 × 980 × 1960 mm

Control Stand: 350 × 300 × 800 mm

Net Weight: 577 kg

Air Supply:

Pressure: ≥ 0.5 MPa

Flow: ≥ 800 L/min

Air must be filtered and dried.

Power Supply: 220 VAC, 5 A
