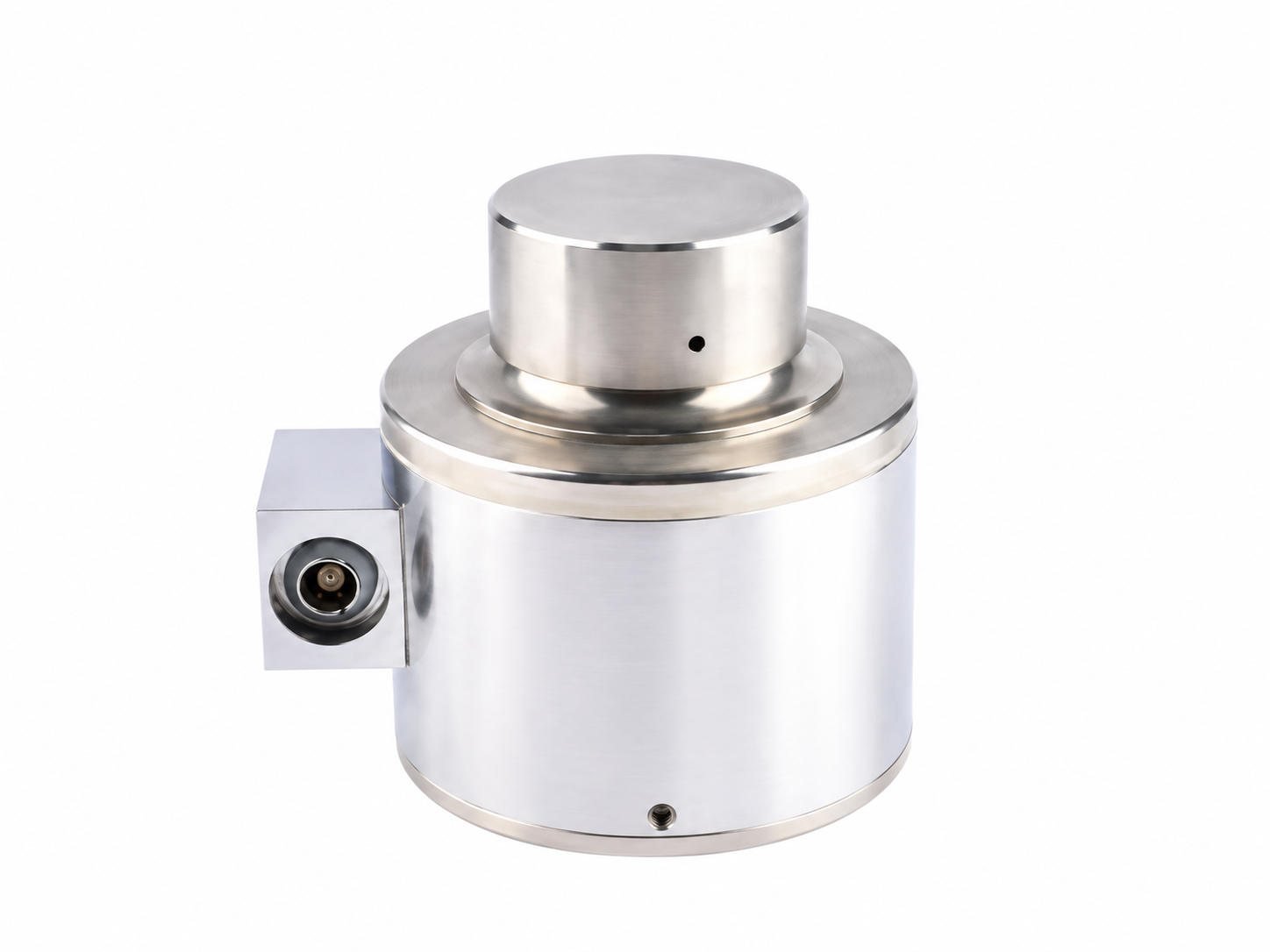

Column Type Load Cell

Core Parameter	Specification
Capacity Range	100 N to 50 MN across MK605-A / MK605-B / MK605-C variants
Output Sensitivity	< 2.0 mV/V
Nonlinearity	<= 0.05% F.S.
Repeatability	<= 0.03% F.S.
Recommended Excitation	10 VDC
Safe Overload	120% F.S.
Operating Temperature	-20 to +60 deg C
Material / Protection	Alloy steel or stainless steel / IP67
