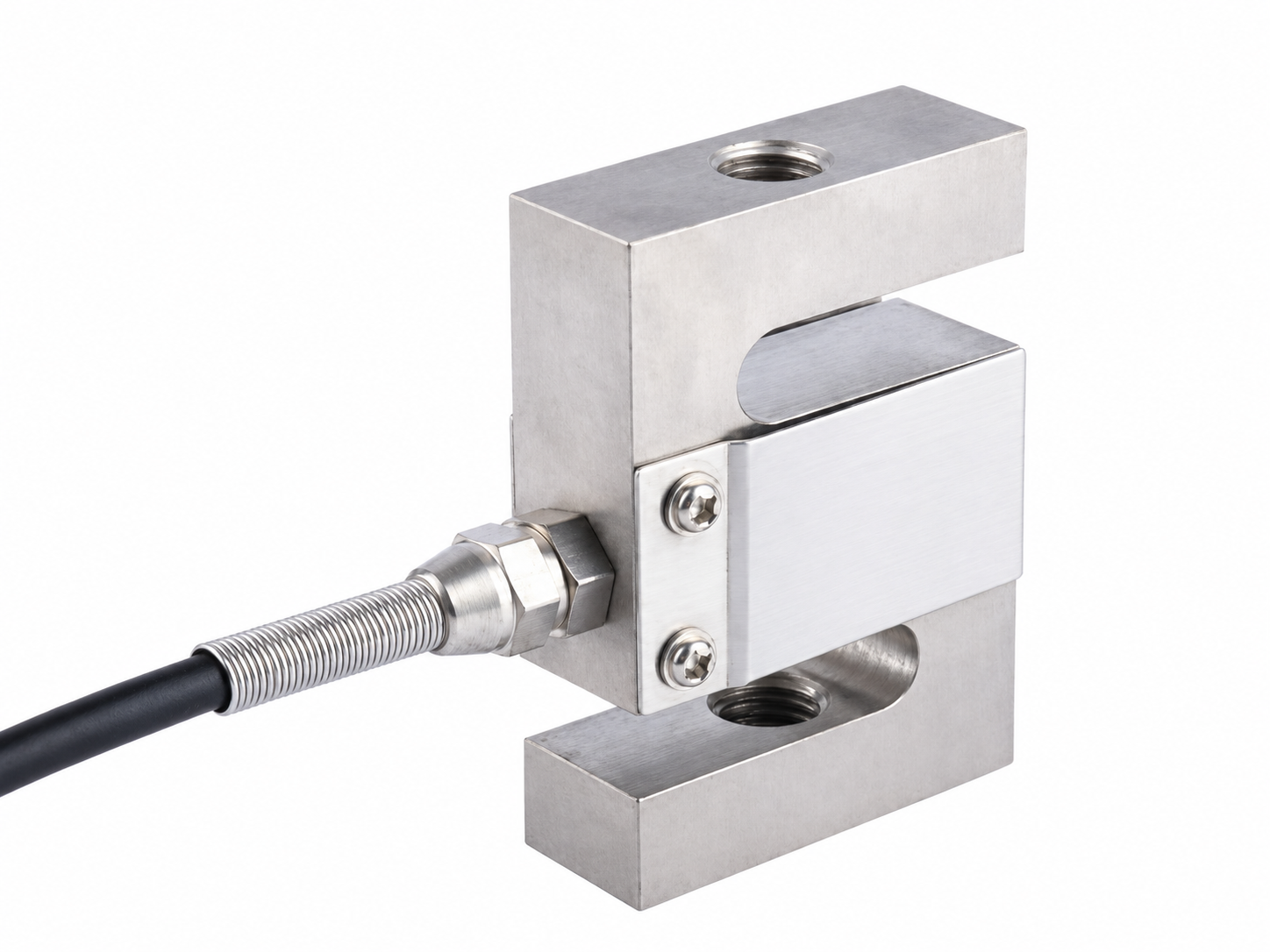

S-Beam Load Cell

Core Parameter	Specification
Rated Capacity	0.5 kN to 50 kN (50 kg to 5 t; multiple options)
Output Sensitivity	2.0 +/- 0.025 mV/V
Nonlinearity	+/- 0.05% F.S.
Creep (30 min)	+/- 0.05% F.S./30 min
Recommended Excitation	10-12 VDC
Safe Overload	120% F.S.
Operating Temperature	-20 to +60 deg C
Material	Alloy steel
